Change log

Migrating from Liquid 1.0 to 2.0

This article describes differences and possible required actions for migrating from the Liquid rendering engine v1.0 to v2.0.

Difference #1: Change in letter case for property names

Some properties inside liquid variables changed their naming (letter case was changed).
Every property now starts with a capital letter.

If the property name consists of several words then the first letter of each word will be capital.

Example

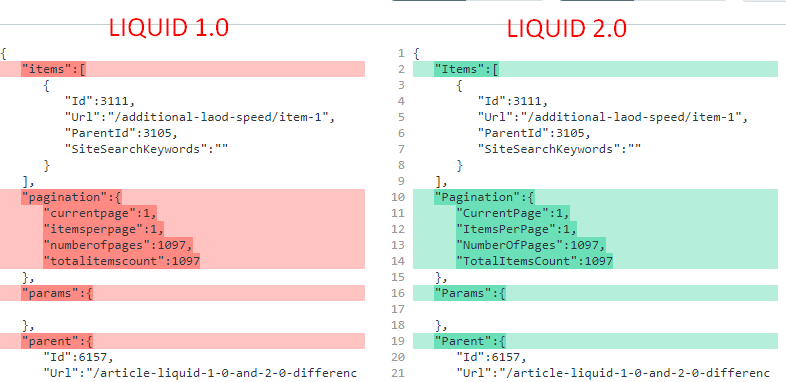

Change in case of letters in property names

Case differences shown in the Event module JSON (above) and when using jsonResponse=1 in a search URL query for AJAX search (below).

Change in case of letters in property names

Required Actions

This change will not affect properties used in liquid implementation as the property access in liquid is case insensitive: {{this['ishome']}} and {{this['IsHome']}} would both work in liquid regardless of the original property letter case.

This change will not affect AJAX responses inside JS functions IF you are using jsonResponse=1 parameter in the forms action. Or if you are using pure output of the this.formSubmissionData to the page and then parsing its content as a JSON response.

However, it will affect AJAX responses inside JS functions if you are using liquid output of, for example, object in order to retrieve it as a JSON string inside an AJAX response (for example an AJAX pagination that relies on a JSON response).
When such JSON will be parsed to the response object - it will consist of the properties which names will have changed letter case (items, pagination, params properties).
So trying to access them using the old lowercase naming will cause an JS error and will break the JS.
So the required action in this case will be to fix old lowercase naming usage to the new letter case.

Difference #2: Some null values were changed to empty strings

Null values of the datasource, ItemTags, ItemCategories were changed to empty string "".

Example

null values were changed to empty strings

Required Actions

This change will not require any action (only if you do not expressly use the fact that null == "" as being false. In Liquid 2.0 null becomes "" and such comparison would start to return true).
The purpose of this change is to simplify determining empty field states.

In liquid 1.0 if value was not set then property was equal to null. But if you select any options for the field, then click save, then cancel your selection and click save, the value of the field could become an empty string "".

So in order to simplify determining if a field is empty or not, it is much easier to just write:

{% if testEmpty == "" %} instead of {% if testEmpty == null or testEmpty == "" %}

Here is a comparison results for empty values (you can see that null is not equal to empty string "" but empty string "" is equal to null as well as for empty string "")

null - empty comparisons

Difference #3: Parsing flow difference

Liquid 1.0 engine starts parsing layouts starting from item detail content. Then if it finds component tags it goes inside and parses list layouts then goes back to detail layout. When it finished parsing the detail layout it sends parsed content to the pageContent variable and then parsed the Page template of the item.
So in this case any variables created inside Page template will not be accessible inside the detail layout and deeper (for example if you are using a custom module named Settings and then using a component to generate a variable with this module item data in the very top of the page template in order to use it anywhere, than it will be accessible only within Page Template and not inside the Detail layout and deeper).

Liquid 2.0 engine parses layouts starting from the Page template. When it comes to parse {{pageContent}} it goes to the detail layout, passing all variables that are generated in the Page template to the detail layout.
In this case the previous scenario of using a custom module named Settings would work perfectly.

In other words; the Liquid 2.0 flow now works downward, through the document render flow - so typically from top of Template --> top of Page --> Layout --> bottom of Page --> bottom of Template.
So you can’t pass a variable from the page content up to the top of a template, but you can pass that variable to anywhere below itself throughout the document flow, even into the bottom of the template (with the exception of inside other Liquid Layouts where the Liquid reference is in conflict with the Layouts own Liquid scope ie: {{this…}}).

Required Actions

If you have Pages/Detail layouts passing Liquid variables up to the template (eg: to populate metadata or other HEAD elements, or to add classes to the BODY...) then you will need to use another method of populating that data. Such as using the {{this}} object directly in the template.

Difference #4: Pages load speed

Liquid 2.0 engine renders much faster {% component type:"module" %} then Liquid 1.0.
As a result, entire pages load faster.

Required Actions

No Actions required

Examples

this for the page

Examples

Collection Variable for Modules

When outputting module data via collectionVariable

Examples
